NANO

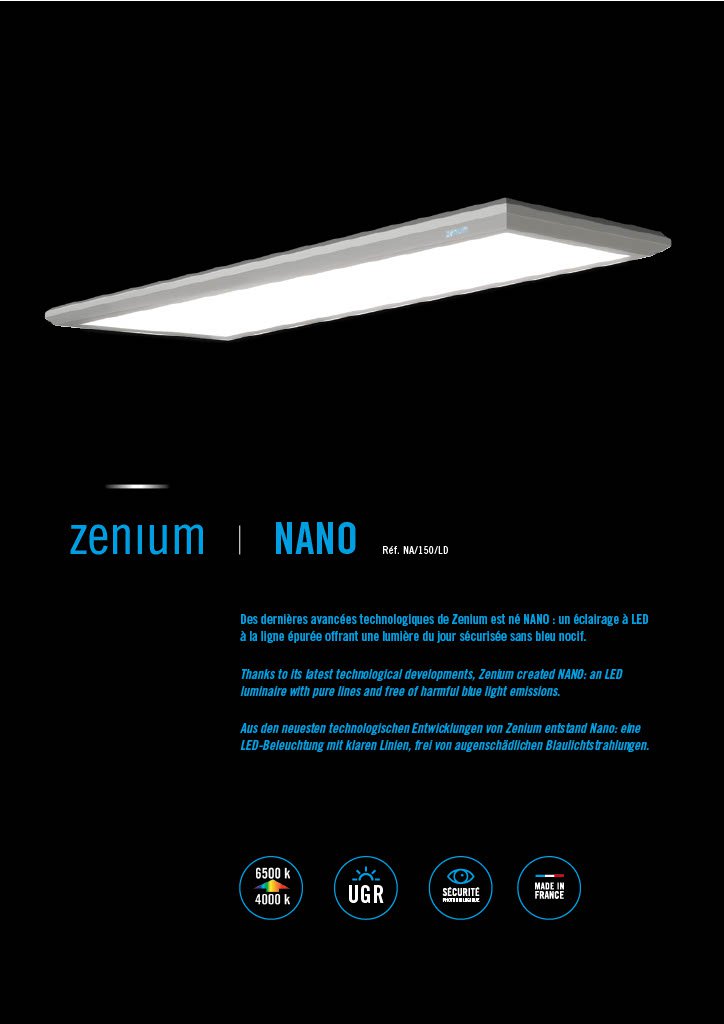

Thanks to its latest technological developments, Zenium created NANO: an LED luminaire with pure lines and free of harmful blue light emissions



Download certificates of conformity


CHROMATICITY AND SHADE DETERMINATION

NANO diffuses a homogeneous light which spectrum best supports shade determination: Nano enables a perfect recognition of the teeth colour shades, structure and colour saturation. Its chromaticity, which was achieved by a minute sorting procedure of its LEDs, complies with the requirements of the chromaticity in respect to the standard illuminant D65 of the International Commission on Illumination.


DAYLIGHT FOR SMALL WORKSPACES

NANO was specially developed for all workspaces in dentistry practices and laboratories where a highly qualified and precise daylight is required. Nano is a compact suspended luminaire which offers the same quality of daylight as all other Zenium luminaires.


SECURITY

NANO is equipped with LEDs that were classified in the risk free group according to the photobiological safety standard, which certifies that a lesion of the retina caused by blue light is excluded, and means a perfect safety for the dentist and his patients.


COMPLIANCE WITH STANDARDS
EN 12464-1, DIN 67505
Photo-biological safety: IEC EN62471 - Exempt group
Conformity of the chromaticity of the standard illuminant D65: BS 950-1:1967.
Certificates issued by METAS, Swiss Federal Institute of Metrology, BPIM member, signatory of CIPM MRA

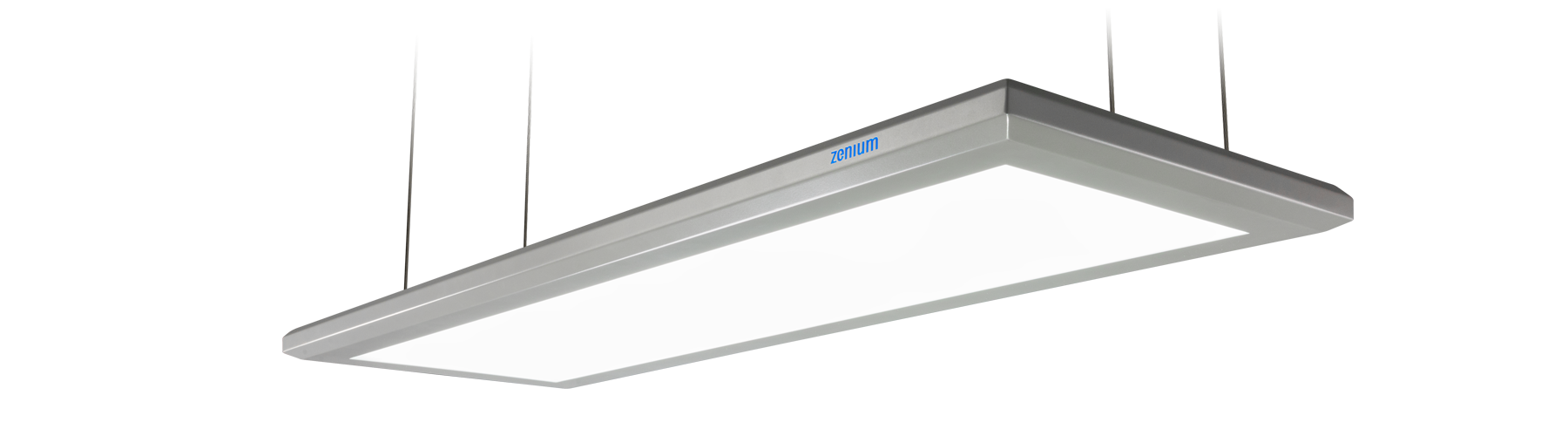

NANO

Référence : NA/150/LD​
Sources : Leds
Consumption : 110 W
Remote control : No
LED-lighting : Direct and indirect
Luminous flux at 1 meter : 1580 lux.
Dimensions : 1280 x 416 x 50 mm
Colour : Silver
Drilling : 1235 x 180 mm
Net weight : 9 kg
Dust protection : IP50
Suspension : 4 height adjustable steel cables
Data Sheet
